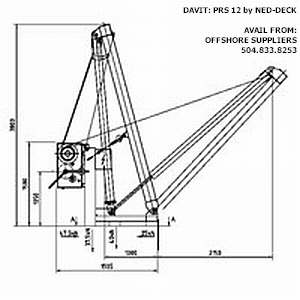

Spring Pivoting Davit: PRS 12

The NED-DECK MARINE spring pivoting davits have been designed for long time operation under adverse and extreme conditions in a highly corrosive marine environment.
The spring pivoting davits of the PRS series are so-called “plug-in and play units” all guaranteeing easy installation on board.
The PRS davit is a freestanding deck mounted davit consisting of a base frame, davit arm, winch and spring unit.
The system is suitable for safe and efficient launching and recovery of a fully manned rescue boat against unfavourable conditions of trim of up to 10 degrees and a list of up to 20 degrees either way.

Pivoting out the fully manned rescue boat from its stowed position into launch position is realised by means of stored mechanical power obtained from a spring unit.

The pivoting and lowering motion can be controlled in two ways, either by means of a remote control pull wire from within the rescue boat or by lifting the brake handle of the winch directly.

Lowering is realised by means of gravity whilst. Recovery of the rescue boat with its crew is realised by using the electric driven winch.
In case of a power failure or malfunctioning of the electric system, hoisting can also be done manually by using the crank handle of the winch.

Since the safe working load and outreach of the davit are normally determined by the size of the rescue boat, NED-DECK MARINE have chosen for a limited range of standard designs which can be adapted to some extent in order to meet individual and specific needs.

The PRS series meets the latest IMO/SOLAS requirements and LSA Code as well as the European Council Directive 96/98 EC on Marine Equipment (M.E.D.).

Data sheet: http://neddeckmarine.com/01_rescue_boat/prs12/PRS12-A-100659A.pdf

Main Components:

Davit arms
The davit system consists of two davit arms of a box welded construction each supported by a base frame.

The davit arms are provided with wire rope sheaves, winch foundations and all necessary provisions for fastening of relevant accessories, such as cylinders and shock absorbers.


Base frames
The davit system consists of two base frames, each supporting a davit arm. These base frames are built up from hollow sections and steel plates to a stiff rigid frame in order to transfer the system forces to the deck structure.


Hydraulic cylinders
Each davit set will be supplied with two high quality double acting hydraulic cylinders provided with dual over-centre valves. The cylinder rods are made of stainless steel (1.4057)


Winches
Each davit arm will be provided with an hydraulic driven winch consisting of the following main components:
- Winch frame
- Closed planetary gear casing;
- Built-on high pressure hydraulic motor
- Fail-safe multi disc brake (dead man’s brake);
- Winch drum;
- Hand hoist unit.


Electric-Hydraulic power unit
Each davit set will be supplied with a sophisticated electric/hydraulic power pack unit which has been fully adjusted in our workshop guaranteeing easy installation onboard. This power unit consists of the following main components:

- Hydraulic tank provided with an integrated hydraulic pump, driven by an electric motor.
- Motor types : Squirrel cage induction motors, flange mounted,
- Execution : Marine execution
- Motor Bearings : Maintenance free, life-time greased
- Ambient working temperature : Max. 45 ºC
- Electric Power Supply : 440V/3ph/60Hz
- Enclosure : IP56 TEFC
- Power consumption : Approx. 65 kW
- Anti-condensation heater : 230V

- Electric Starter box provided with main switch, emergency stop button, anti-condensation heating (230V), “power-on” indicator, running signalling and extra terminal for remote indication and failure signalling indicators.
All external controls will be IP56 rated.

Operating console
Each davit set will be supplied with a stainless steel operating console which should be placed near the railing enabling the operator to have full view over the entire launching and hoisting procedure. From this console all system functions can be controlled.

Hydraulic tubing/fittings:
The davit systems will be supplied with stainless steel tubes and standard commercial steel fittings protected with denso tape.


Accessories:

Each davit system will be supplied with the following accessories:

Wire ropes
One set galvanised non-rotating steel wire rope falls of sufficient length for lowering the boat into the water;

Shock absorbers
Hydro-pneumatic shock absorbers (one per davit arm)

Conservation
As per customer’s requirements

See MFR site: http://neddeckmarine.com/01_rescue_boat/index.php
