Ned-Deck Marine - or NDM for short - is an internationally operating, dynamic and innovative manufacturer of life-saving appliances, RHIB catch systems and deck cranes. In recent years NDM has become one of the leading companies in the lifesaving industry world wide.

Use buttons to scroll through products View Cart   Checkout  Back to Main Products Page

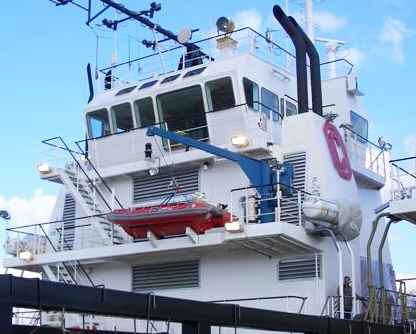

OSI’s SECURE SALES ORDER CART - PRODUCT PAGE   Hydraulic Slewing Davit: SCH 15 - 4.0 R (Rescue Boat: Hydraulic) Rescue Davits - Hydraulic: The NED-DECK MARINE hydraulic slewing davits have been designed for long time operation under adverse and extreme conditions in a highly corrosive marine environment. The hydraulic slewing davits of the SCH-R series are so-called “plug-in and play units” all guaranteeing easy installation on board. The SCH-R davit is a freestanding deck mounted davit consisting of a davit arm, column, winch and built-on hydraulic power pack unit. The system is suitable for safe and efficient launching and recovery of a fully manned rescue boat against unfavourable conditions of trim of up to 10 degrees and a list of up to 20 degrees either way. Slewing out the fully manned rescue boat from its stowed position into launch position is realised by means of accumulated power obtained from a self-containing hydraulic power pack unit. The slewing motion is actuated from within the rescue boat by means of a remote control pull wire. Lowering is realised by means of gravity. The lowering motion can be controlled in two ways, either by means of a remote control pull wire from within the rescue boat or by lifting the brake handle of the winch directly. Recovery of the rescue boat with its crew is realised by using the electric driven winch. In case of a power failure or malfunctioning of the electric system, hoisting can also be done manually by using the crank handle of the winch. Since the safe working load and outreach of the davit are normally determined by the size of the rescue boat, NED-DECK MARINE have chosen for a limited range of standard designs which can be adapted to some extent in order to meet individual and specific needs. The SCH-R series meets the latest IMO/SOLAS requirements and LSA Code as well as the European Council Directive 96/98 EC on Marine Equipment (M.E.D.). The NED-DECK MARINE hydraulic slewing davits have been designed for long time operation under adverse and extreme conditions in a highly corrosive marine environment. The hydraulic slewing davits of the SCH-R series are so-called “plug-in and play units” all guaranteeing easy installation on board. The SCH-R davit is a freestanding deck mounted davit consisting of a davit arm, column, winch and built-on hydraulic power pack unit. The system is suitable for safe and efficient launching and recovery of a fully manned rescue boat against unfavourable conditions of trim of up to 10 degrees and a list of up to 20 degrees either way. Slewing out the fully manned rescue boat from its stowed position into launch position is realised by means of accumulated power obtained from a self-containing hydraulic power pack unit. The slewing motion is actuated from within the rescue boat by means of a remote control pull wire. Lowering is realised by means of gravity. The lowering motion can be controlled in two ways, either by means of a remote control pull wire from within the rescue boat or by lifting the brake handle of the winch directly. Recovery of the rescue boat with its crew is realised by using the electric driven winch. In case of a power failure or malfunctioning of the electric system, hoisting can also be done manually by using the crank handle of the winch. Since the safe working load and outreach of the davit are normally determined by the size of the rescue boat, NED-DECK MARINE have chosen for a limited range of standard designs which can be adapted to some extent in order to meet individual and specific needs. The SCH-R series meets the latest IMO/SOLAS requirements and LSA Code as well as the European Council Directive 96/98 EC on Marine Equipment (M.E.D.). See MFR site: http://neddeckmarine.com/01_rescue_boat/index.php for more info... Quantity:

PLEASE CONTACT US AT (504) 833-8253 IF ASSISTANCE IS NEEDED OR IF YOU PREFER TO ORDER OVER THE PHONE. NEED SOMETHING YOU DON’T SEE HERE? CHANCES ARE WE CAN GET YOU A GREAT DEAL ON IT, JUST CALL US...
